FUMARO

Aumüller FTA 600 GF S12

For inward opening applications

Smart window opening solutions are tailored exactly to your needs. Folding arm drives offer an effective solution for a wide range of buildings.

Essential drive parameters can be programmed for the specific application by means of an integrated microprocessor and position detection.

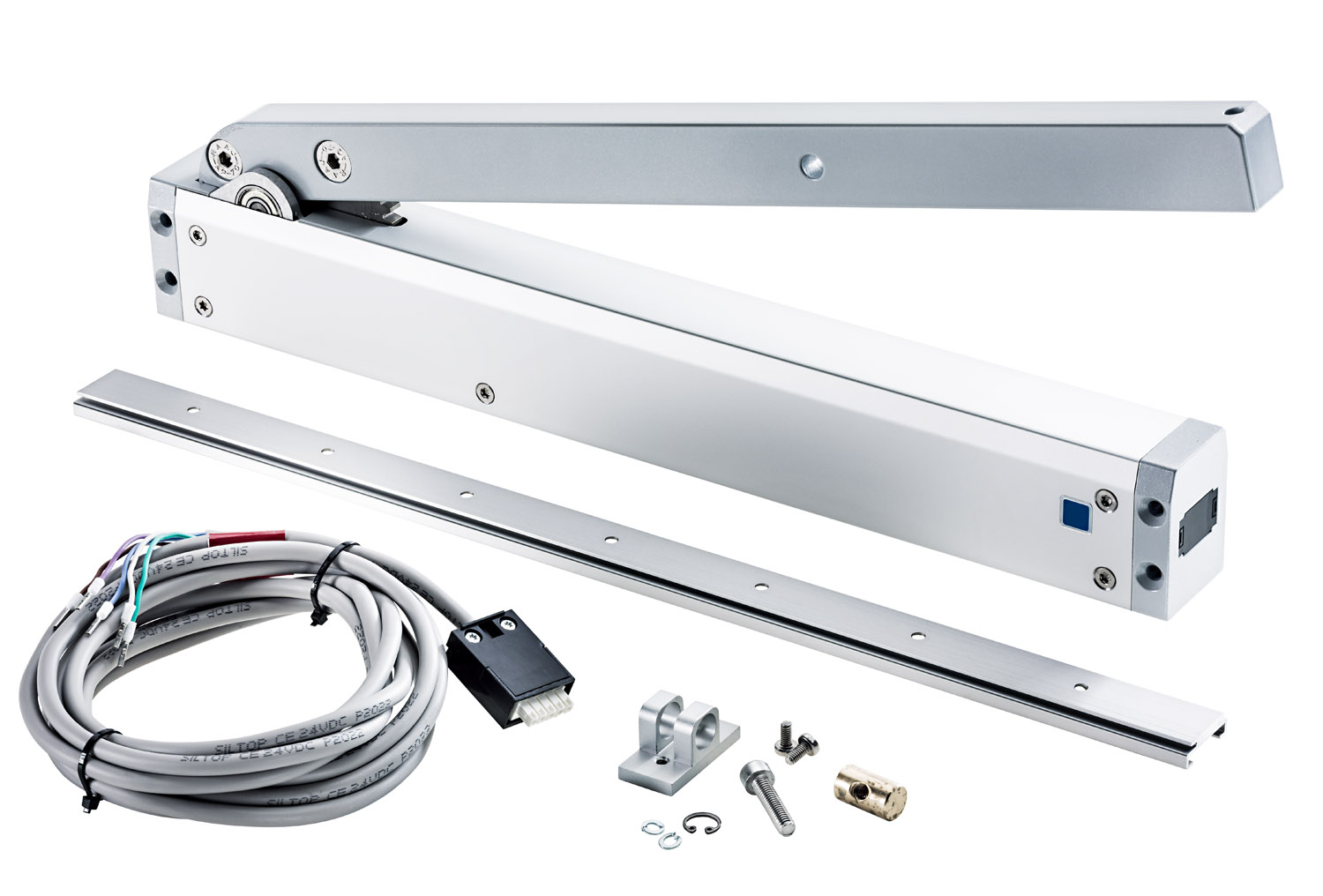

Aumüller FTA 600 GF S12

Features

  • Folding arm drive for inward opening applications.
  • Suitable for both SHEV systems and automated facade windows.
  • Integrated microprocessor with position detection.
  • Programmable drive parameters for project-specific setup.
  • Low operating costs and simple installation.
  • Load-dependent cut-off electronics for safer and smarter operation.
  • Supports synchronous multi-drive systems and sequence control with locking drives.
  • Object-specific programming is possible without additional modules.

Technical Overview

Parameter Value
TypeFolding arm drive
ModelFTA 600 GF S12
ApplicationInward opening applications
Supply voltage24 V DC
ControlIntegrated microprocessor
DetectionPosition detection
UseNatural ventilation and SHEV
ProgrammingProject-specific parameter configuration
System integrationMulti-drive synchronous operation and sequence control
Additional functionCooperation with locking drives without extra modules
