System Overview And Control Functions

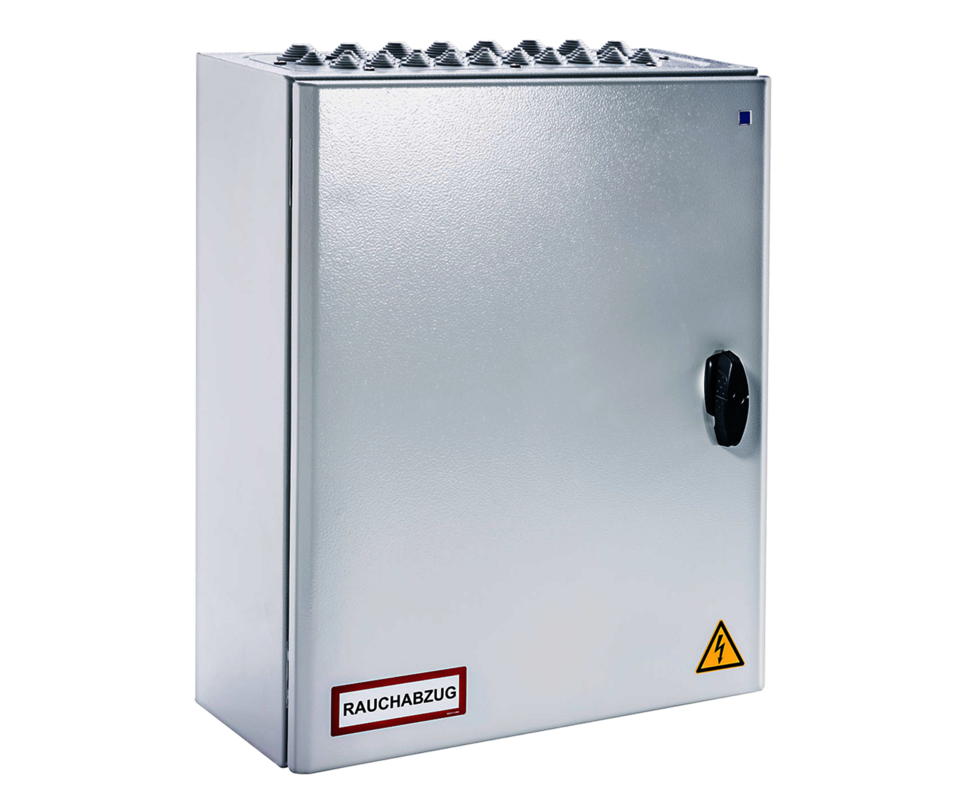

The EMB8000+ is a modular smoke ventilation control panel used to power and control electromotive window drives in facade and roof areas. Its primary purpose is to evacuate smoke and combustion gases in case of fire, while also supporting natural day-to-day ventilation of the building. In practice, it is the type of system used when a project goes beyond a simple staircase solution and requires a more advanced, flexible and network-capable SHEV platform.

On the FUMARO product page, the EMB8000+ is positioned as a solution for medium to large buildings, from straightforward stairwell applications up to complex smoke and heat ventilation systems with decentralized power supply and data-bus network technology. This makes it a strong choice for office buildings, public buildings, commercial developments, industrial projects and larger multi-zone buildings where several smoke sections, multiple window groups and wider system logic have to be coordinated within one platform.

From an SEO perspective, this is exactly the type of product searched under phrases such as modular smoke ventilation control unit, SHEV control panel for large buildings, networked smoke exhaust control system or digital control unit for natural smoke ventilation.

Modular Architecture And Expansion Logic

One of the core strengths of the EMB8000+ is its modular system architecture. Instead of being a fixed, closed control box, it can be configured and expanded using dedicated functional modules. This allows the system to be adapted to the specific needs of the building, the number of smoke sections, the number of ventilation groups and the required type of integration.

According to the product documentation, the system can include modules such as the CM Control Module, SM Sensor Module, DM Drive Module, DMX Drive Module, IDM Intelligent Drive Module, RM6 Relay Module, WM+ Weather Module, PM Power Module, PME Power Module Extension and IM-K+ KNX Interface Module. This modular structure allows the control unit to be scaled from smaller installations to much larger and more advanced ventilation and smoke extraction schemes.

• Drive modules for 24 V actuator groups up to 20 A
• Sensor modules for additional fire zones and monitored detector lines
• Relay modules for alarm, fault and status forwarding
• Weather modules for wind, rain and temperature-based logic
• Power and power-extension modules for energy management and battery monitoring
• KNX interface modules for integration with building automation systems

This means the EMB8000+ is not just a smoke control cabinet, but a configurable control platform for smoke extraction and ventilation strategies that need to evolve with the complexity of the project.

Networking, Configuration And Integration

A key advantage of the EMB8000+ is its ability to create decentralized, networked control structures. The manufacturer describes networking of up to 30 control panels, which reduces 24 V DC cable routes and allows more efficient design in larger projects. This is particularly important in buildings where long cable distances, multiple smoke sections and distributed window groups would otherwise create high installation costs and design limitations.

The control unit supports CAN bus, Wi-Fi, USB, Ethernet/IP and optional KNX integration. Configuration can be carried out using dedicated software, and the documentation also describes SD card-based configuration transfer and system operation through PCs, tablets and smartphones. This makes the EMB8000+ especially attractive for projects that require easier commissioning, remote diagnostics, digital maintenance workflows and better connection to BMS or facade automation.

The product documentation also highlights advanced options such as freely programmable BUS HSE push buttons, monitored detector lines, direct connection of smoke detectors and ventilation buttons in one physical line, wind- and rain-dependent control, and even a Virtual Control Unit workflow for creating complete configurations before hardware is connected on site. In practical project delivery, that can reduce commissioning pressure, shorten installation time and simplify changes during later project phases.

Available Versions And Technical Scope

The EMB8000+ range covers a broad power spectrum, which is one of the reasons it is suitable for larger and more complex buildings. On the FUMARO page, the standard versions shown include 5 A, 10 A, 24 A, 48 A, 72 A and 96 A. The manufacturer materials further describe 24 V DC versions and selected 230 V variants, depending on the application concept.

The product documents describe the EMB8000+ as a system for 24 V DC drives with low residual ripple output voltage and monitored line outputs, while broader technical literature also references 230 V drive module options for certain ventilation and SHEV scenarios. Standard operating voltage for the main supply is typically 230 V AC, while the largest 96 A version is documented with 400 V AC input. The unit is also designed for backup battery operation in accordance with EN 12101-10 requirements, depending on version and equipment.

• Power range from 5 A to 96 A
• Prepared for emergency battery backup depending on version
• Compliant with ISO 21927-9
• Power supply compliant with EN 12101-10 except EMB8000+ 5A
• Protection rating IP40 or IP54 depending on housing
• Ambient temperature range typically -5°C to +40°C
• Surface-mounted steel enclosures in multiple dimensions

In other words, the EMB8000+ is positioned as a high-flexibility, project-scalable SHEV control unit that can support anything from relatively compact installations to extensive building-wide smoke ventilation systems.

Technical Documentation And Downloads

The files below include product information, commissioning instructions, technical data sheets and certificates for the EMB8000+ modular control unit. These links follow the document structure used on the FUMARO product page.

• Information Brochure EMB8000+
• Assembly And Commissioning Instruction EMB8000+
• Product Features EMB8000+
• Data Sheet EMB8000+
• Data Sheet Accessories
• Declaration Of Conformity EMB8000+
• VdS Approval EMB8000+
• Certificate Of Constancy Of Performance EMB8000+
